指示燈、按鈕、旋鈕開關
規格
| 規範 | EN60947-5-1, UL508 |
| 認證 | UL, and CE marked |
| 使用類別 | AC15 A600 |
| 最小電流 | 5V, 5mA, DC |
| 額定開路熱電流 | 10A |
| 額定絕緣電壓 | 600V AC |
| 絕緣電阻 | 100MΩ min. (DC 500V) |
| 接觸電阻（初始值） | 50mΩ max. (Initial) |
| 抗衝擊 | 500 m/s² |
| 允許的最大開關頻率 | 1800 operation per hour |
| 機械耐久性 | 1 x 107 Cycle min |
| 電氣耐久性 | 100,000 Cycle min |
| 耐震動 | IEC 68-2-6, 10-55Hz±1 Hz, Excursion: 0.35mm, 1 octave/min |
| 螺絲擰緊扭矩 | 0.8N-m for five seconds without any fracture |
| 擰緊扭矩 | 2.5N-m for one min. without any fracture |
> 產品選型
操作特性
| Unit: mm | |||
| HPB22-F / HPB22-L |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| HPB22-F: Flush Head HLB22-L: Flush Head With Lock |
HPB22-F□R | RED |
| HPB22-F□G | GREEN | |
| HPB22-F□Y | YELLOW | |
| HPB22-F□S | BLUE | |
| HPB22-F□B | BLACK | |
| HPB22-F□W | WHITE | |
| Unit: mm | |||
| HPB22-E / HPB22-P |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| HPB22-E: Elevation Head HLB22-P: Elevation Head With Lock |
HPB22-E□R | RED |
| HPB22-E□G | GREEN | |
| HPB22-E□Y | YELLOW | |
| HPB22-E□S | BLUE | |
| HPB22-E□B | BLACK | |
| HPB22-E□W | WHITE | |
| Unit: mm | |||
| HLB22-F / HLB22-L |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| LED illuminated HLB22-F: Flush Head HLB22-L: Flush Head With Lock |
HLB22-F□R | RED |
| HLB22-F□G | GREEN | |
| HLB22-F□Y | YELLOW | |
| HLB22-F□S | BLUE | |
| HLB22-F□W | WHITE | |
| Unit: mm | |||
| HLB22-E / HLB22-P |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| LED illuminated HLB22-E: Elevation Head HLB22-P: Elevation Head With Lock |
HLB22-E-E□R | RED |
| HLB22-E-E□G | GREEN | |
| HLB22-E-E□Y | YELLOW | |
| HLB22-E-E□S | BLUE | |
| HLB22-E-E□W | WHITE | |
| Unit: mm | |||

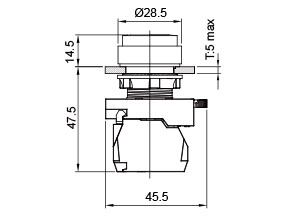

| HPB22-D |
Item No. | Dimensions
| Description | |
| HEAD TYPE | ITEM |
| HPB22-D: Double Push Button | HLB22-D□ |
| Unit: mm | |||
| HLB22-D |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| LED illuminated HLB22-D:Double Push Button |
HLB22-D□R | RED |
| HLB22-D□G | GREEN | |
| HLB22-D□Y | YELLOW | |
| Unit: mm | |||
| HPB22-M/HPB22-G |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| HPB22-M: Mushroom Head (40ϕ) HPPB22-G:Mushroom Head (40ϕ) With Lock |
HPB22-M□R | RED |
| HPB22-M□G | GREEN | |
| HPB22-M□Y | YELLOW | |
| Unit: mm | |||
| HLB22-M/HLB22-G |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| LED illuminated HLB22-M: Mushroom Head (40ϕ) HLB22-G:Mushroom Head (40ϕ) With Lock |
HLB22-M□R | RED |
| HLB22-M□G | GREEN | |
| HLB22-M□Y | YELLOW | |
| Unit: mm | |||
| HPB22-T / HLB22-T |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| HPB22-T: Turn To Reset Head (40ϕ) HLB22-T: LED illuminated |
HLB22-T□ | --- |
| HLB22-T□R | RED | |
| Unit: mm | |||
| HPB22-R/HLB22-R |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| HPB22-R: Turn To Reset Head (40ϕ) HLB22-R: LED illuminated |
HPB22-R□ | --- |
| HLB22-R□R | RED | |
| Unit: mm | |||
| HPB22-J |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| HPB22-J: Turn To Reset Mushroom Head (40ϕ) |
HPB22-R□ | RED |
| Unit: mm | |||
| HPB22-H |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| HPB22-H: Turn To Reset Mushroom Head (40ϕ) |
HPB22-H□ | RED |
| Unit: mm | |||
| HPB22-K |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| HPB22-K: Mushroom Head (40ϕ) With Key |
HPB22-K□ | RED |
| Unit: mm | |||
| HPB22-I |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| HPB22-I: Turn To Reset Mushroom Head (40ϕ) |
HPB22-I□ | RED |
| Unit: mm | |||
| HPB22-S |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| HPB22-S: Reset Push-Pull Stop Mushroom Head (35ϕ) |
HPB22-S□ | RED |
