Selector Switch
Model：HSS22 Series

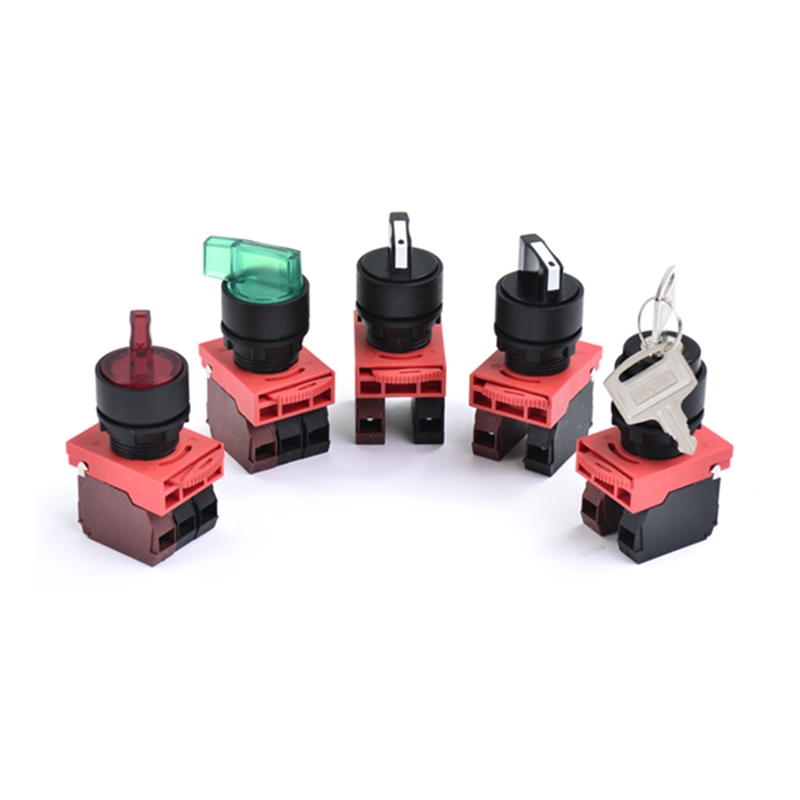

An electronic rotary switch is often used in controlling a mechanic or electronic equipment or device. The main function of electronic selector switches is to make, break or change the circuit connections. HIGHLY, as an outstanding selector switches manufacturer, we provide the best products to meet our customer's needs. Contact us here!
Feature :
• Precise and sophisticated design, user-friendly into application.
• Workable stacking contact block, easy to install, and disassembly.
• Smart mounting ring design, can connect Φ22mm switchable to Φ30mm diameter.
• Several push button type options can completely fulfill your needs.
• Several emergency stop of push button options.
• Several positional removable options.
• Several control box options.
• Compliance to UL approval.
Download
Add to inquiry
Feature :
• Precise and sophisticated design, user-friendly into application.
• Workable stacking contact block, easy to install, and disassembly.
• Smart mounting ring design, can connect Φ22mm switchable to Φ30mm diameter.
• Several push button type options can completely fulfill your needs.
• Several emergency stop of push button options.
• Several positional removable options.
• Several control box options.
• Compliance to UL approval.
Specifications
| Standards | EN60947-5-1, UL508 |
| Approvals | UL, and CE marked |
| Utilization Category | AC15 A600 |
| Min Current | 5V, 5mA, DC |
| Thermal Current (lth) | 10A |
| Rated Insulation Voltage | 600V AC |
| Insulation Resistance | 100MΩ min. (DC 500V) |
| Contact Resistance | 50mΩ max. (Initial) |
| Shock Resistance | 500 m/s² |
| Max Switching Frequency | 1800 operation per hour |
| Mech. Life Expectancy | 1 x 107 Cycle min |
| Electrically Life Expectancy | 100,000 Cycle min |
| Vibration | IEC 68-2-6, 10-55Hz±1 Hz, Excursion: 0.35mm, 1 octave/min |
| Screw Torque | 0.8N-m for five seconds without any fracture |
| Tightening Torque | 2.5N-m for one min. without any fracture |
> Product Selection
Operating Characteristics
| Unit: mm | |||
| HLS22-S2 / HSS22-S2 |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| HLS22-S2: LED illuminated. HSS22-S2: Normal Shaft |
HSS22-S2□R | RED |
| HSS22-S2□G | GREEN | |
| HSS22-S2□Y | YELLOW | |
| HSS22-S2□B | BLACK | |
| HLS22-S2□R | RED | |
| HLS22-S2□G | GREEN | |
| HLS22-S2□Y | YELLOW | |
| Unit: mm | |||
| HLS22-S3 / HSS22-S3 |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| HLS22-S3: LED illuminated. HSS22-S3: Normal Shaft |
HSS22-S3□R | RED |
| HSS22-S3□G | GREEN | |
| HSS22-S3□Y | YELLOW | |
| HSS22-S3□B | BLACK | |
| HLS22-S3□R | RED | |
| HLS22-S3□G | GREEN | |
| HLS22-S3□Y | YELLOW | |
| Unit: mm | |||
| HLS22-L1 / HSS22-L1 |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| 22-L1: LED illuminated. HSS22-L1: Normal Shaft |
HSS22-L1□R | RED |
| HSS22-L1□G | GREEN | |
| HSS22-L1□Y | YELLOW | |
| HSS22-L1□B | BLACK | |
| HLS22-L1□R | RED | |
| HLS22-L1□G | GREEN | |
| HLS22-L1□Y | YELLOW | |
| Unit: mm | |||
| HLS22-L2 / HSS22-L2 |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| HLS22-L2: LED illuminated. HSS22-L2: Normal Shaft |
HSS22-L2□R | RED |
| HSS22-L2□G | GREEN | |
| HSS22-L2□Y | YELLOW | |
| HSS22-L2□B | BLACK | |
| HLS22-L2□R | RED | |
| HLS22-L2□G | GREEN | |
| HLS22-L2□Y | YELLOW | |
| Unit: mm | |||
| HSS22-K0 |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| HSS22-K0: Key Type | HSS22-k0□B | Black |
| Unit: mm | |||
| HSS22-K3 |
Item No. | Dimensions
| Description | ||
| HEAD TYPE | ITEM | CAP COLOR |
| HSS22-K3: Key Type | HSS22-k3□B | Black |
